Corner Edge Circuit Board Supports
CHCBS
Locking Corner Edge Circuit Board Support
![](https://static.wixstatic.com/media/fb8969_1b300b65168e4c93b60a6666da695567~mv2.jpg/v1/fill/w_195,h_195,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/fb8969_1b300b65168e4c93b60a6666da695567~mv2.jpg)
Material: UL94 V2 Nylon 6/6, RMS-01
Colour: Natural
Standard Pack Size: 1000
RoHS Compliant
Download the PDF for more information and detailed drawing.
![](https://static.wixstatic.com/media/fb8969_2eb5c12b8e65492781406c4f2205ebf8~mv2.jpg/v1/fill/w_236,h_274,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/fb8969_2eb5c12b8e65492781406c4f2205ebf8~mv2.jpg)

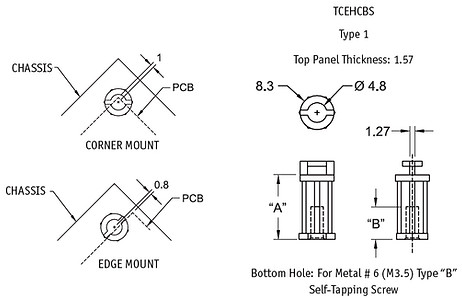

TCEHCBS
Corner Edge Holding Circuit Board Support
![](https://static.wixstatic.com/media/fb8969_3d9d91fa8b6c48fe8f9666c88376dd45~mv2.jpg/v1/fill/w_195,h_195,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/fb8969_3d9d91fa8b6c48fe8f9666c88376dd45~mv2.jpg)
Material: Nylon 6/6, RMS-01
Colour: Natural
Standard Pack Size: 1000
RoHS Compliant
Download the PDF for more information and detailed drawing.
![](https://static.wixstatic.com/media/fb8969_4c397ccdc9524fa483359da31a3b6a6d~mv2.jpg/v1/crop/x_14,y_18,w_814,h_525/fill/w_462,h_298,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/fb8969_4c397ccdc9524fa483359da31a3b6a6d~mv2.jpg)

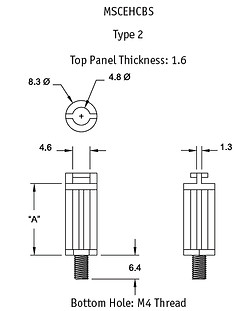

MSCEHCBS
Corner Edge Holding Circuit Board Support
![](https://static.wixstatic.com/media/fb8969_3d9d91fa8b6c48fe8f9666c88376dd45~mv2.jpg/v1/fill/w_195,h_195,al_c,q_80,usm_0.66_1.00_0.01,blur_3,enc_auto/fb8969_3d9d91fa8b6c48fe8f9666c88376dd45~mv2.jpg)
Material: UL94 V2 Nylon 6/6, RMS-01
Colour: Natural
Standard Pack Size: 1000
RoHS Compliant
Download the PDF for more information and detailed drawing.
![](https://static.wixstatic.com/media/fb8969_4c397ccdc9524fa483359da31a3b6a6d~mv2.jpg/v1/crop/x_931,y_0,w_428,h_543/fill/w_61,h_78,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/fb8969_4c397ccdc9524fa483359da31a3b6a6d~mv2.jpg)
