Edge Holding Circuit Board Supports
TEHCBS
Edge Holding Circuit Board Support
![](https://static.wixstatic.com/media/fb8969_370865db746848f9a49c6da2179f4664~mv2.jpg/v1/fill/w_195,h_195,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/fb8969_370865db746848f9a49c6da2179f4664~mv2.jpg)
Material: UL94 V2 Nylon 6/6, RMS-01 / UL94 V0 Nylon 6/6, RMS-19
Colour: Natural
Standard Pack Size: 1000
RoHS Compliant
Download the PDF for more information and detailed drawing.
![](https://static.wixstatic.com/media/fb8969_b7a016ddd40c438fbaf5aaa5f2e960e6~mv2.jpg/v1/crop/x_18,y_0,w_841,h_817/fill/w_282,h_274,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/fb8969_b7a016ddd40c438fbaf5aaa5f2e960e6~mv2.jpg)
EHCBS
Edge Holding Circuit Board Support
![](https://static.wixstatic.com/media/fb8969_ca05a79d26f848af87534f9e95c23d19~mv2.jpg/v1/fill/w_195,h_195,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/fb8969_ca05a79d26f848af87534f9e95c23d19~mv2.jpg)
Material: UL94 V2 Nylon 6/6, RMS-01 / UL94 V0 Nylon 6/6, RMS-19
Colour: Natural
Standard Pack Size: 1000
RoHS Compliant
Download the PDF for more information and detailed drawing.
![](https://static.wixstatic.com/media/fb8969_049638b3f2db4469b96b6daa2c67bdf3~mv2.png/v1/fill/w_479,h_195,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/fb8969_049638b3f2db4469b96b6daa2c67bdf3~mv2.png)
EHCBS-9/10
Edge Holding Circuit Board Support, No Nose
![](https://static.wixstatic.com/media/fb8969_a635bda5a1cf40b399cf53d5ed38b6c4~mv2.jpg/v1/fill/w_195,h_195,al_c,q_80,usm_0.66_1.00_0.01,blur_3,enc_auto/fb8969_a635bda5a1cf40b399cf53d5ed38b6c4~mv2.jpg)
Material: UL94 V2 Nylon 6/6, RMS-01
Colour: Natural
Standard Pack Size: 1000
RoHS Compliant
Download the PDF for more information and detailed drawing.
![](https://static.wixstatic.com/media/fb8969_57e25cc2e16f4c3490b2b3bae6ff1d53~mv2.png/v1/fill/w_62,h_49,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/fb8969_57e25cc2e16f4c3490b2b3bae6ff1d53~mv2.png)

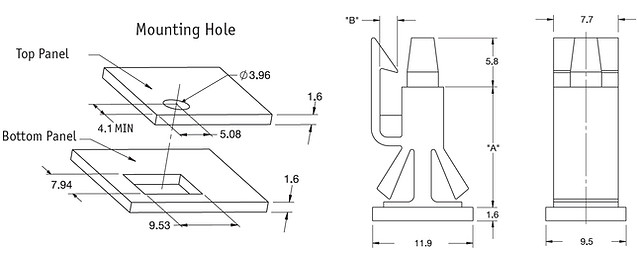

RLEHCBS
Reverse Locking Edge Holding Circuit Board Support
![](https://static.wixstatic.com/media/fb8969_b421c139f3364bb4936797fbc63f256e~mv2.jpg/v1/fill/w_195,h_195,al_c,q_80,usm_0.66_1.00_0.01,blur_3,enc_auto/fb8969_b421c139f3364bb4936797fbc63f256e~mv2.jpg)
Material: UL94 V2 Nylon 6/6, RMS-01
Colour: Black
Standard Pack Size: 1000
RoHS Compliant
Download the PDF for more information and detailed drawing.
![](https://static.wixstatic.com/media/fb8969_7213520f3f5e4f2998ac530d2b19b14f~mv2.jpg/v1/crop/x_6,y_0,w_1379,h_543/fill/w_115,h_45,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/fb8969_7213520f3f5e4f2998ac530d2b19b14f~mv2.jpg)
